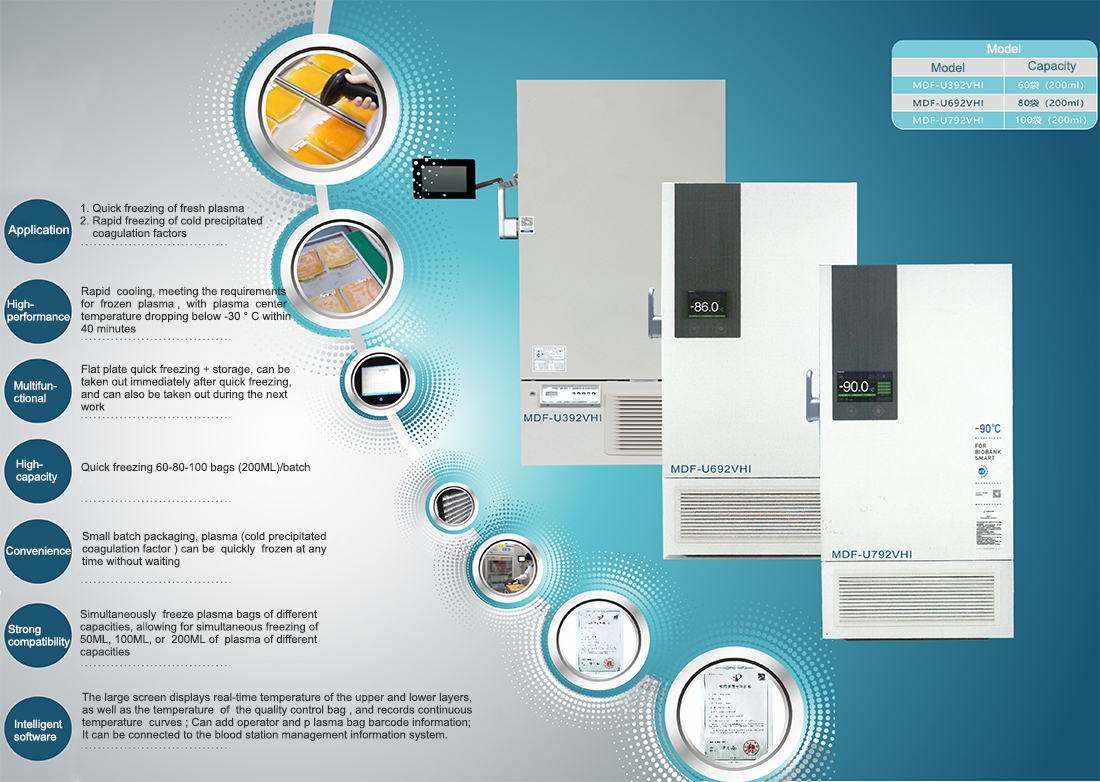

MDF-U392VHI
1. Effective volume: ≥ 330L;
2. Temperature range: -50 ℃ to -90 ℃;
3. Compressor: 2 fully enclosed compressors with an output power of ≤ 1000W. The two compressors can work simultaneously or alternately, serving as backup for each other;
4. Security alarm: high/low temperature alarm settings, power outage alarm, filter screen alarm, battery level alarm, etc;
5. Quick freezing effect: The time for the plasma core temperature to reach -30 ℃ is ≤ 40 minutes;
6. Capacity: Each batch can freeze at least 60 bags of plasma (200ml/bag);
7. Compatibility: Simultaneously freeze plasma bags of different capacities, allowing for simultaneous freezing of 50ml, 100ml, or 200ml of plasma of different capacities;
8. Multi functional: It can achieve quick freezing of tablets and short-term storage. After the quick freezing is completed, it can be taken out in a timely manner, and can also be taken out during the next work;
9. Cold storage board ≥ 9 layers;
10. The cold storage plate has a pressure function, which can compress the plasma bag flat;
11. Freezing box: Each quick freezing refrigerator is equipped with at least 28 quick freezing boxes;
12. Sensors: Internally arranged air temperature sensors, cold plate temperature sensors, and quality control bag temperature sensors;
13. Intelligent software: Large screen display of real-time upper and lower temperature layers, recording continuous temperature curves; Can add operator and plasma bag barcode information according to user needs; Can be networked with the blood station management information system; Temperature data can be connected to the management system.

MDF-U692VHI
1. Effective volume: ≥ 600L;
2. Temperature range: -50 ℃ to -90 ℃;
3. Compressor: Equipped with 2 imported compressors, fully enclosed, with an output power of ≤ 1000W. The two compressors can work simultaneously or alternately, serving as backup for each other;
4. Security alarm: high/low temperature alarm settings, power outage alarm, filter screen alarm, battery level alarm, etc;
5. Quick freezing effect: The time for the plasma core temperature to reach -30 ℃ is ≤ 40 minutes;
6. Capacity: 80 bags (200ml/bag) of frozen plasma per batch;
7. Compatibility: Simultaneously freeze plasma bags of different capacities, allowing for simultaneous freezing of 50ml, 100ml, or 200ml of plasma of different capacities;
8. Multi functional: It can achieve quick freezing of tablets and short-term storage. After the quick freezing is completed, it can be taken out in a timely manner, and can also be taken out during the next work;
9. Cold storage board ≥ 9 layers;
10. The cold storage plate has a pressure function, which can compress the plasma bag flat;
11. Quick freezing box: Each quick freezing refrigerator is equipped with at least 28 quick freezing boxes;
12. Sensors: Internally arranged air temperature sensors, cold plate temperature sensors, and quality control bag temperature sensors;
13. Intelligent software: Large screen display of real-time upper and lower temperature layers, recording continuous temperature curves; Can add operator and plasma bag barcode information according to user needs; Can be networked with the blood station management information system; Temperature data can be connected to the management system;
14. The refrigerator is equipped with a temperature acquisition module for temperature monitoring in the cold chain system, with out of control alarms, and can be connected to the refrigerator monitoring system.

MDF-U792VHI
1. Style: all-in-one machine;
2. Effective volume: ≥ 700L;
3. Temperature range: -50~-90 ℃;
4. Compressor: fully enclosed type, equipped with 2 compressors at the same time, with a single output power of ≤ 1000W. Two compressors can work simultaneously or alternately, serving as backup for each other;
5. Security alarm: high/low temperature alarm settings, power outage alarm, filter screen alarm, battery level alarm, etc;
6. Quick freezing effect: The time for the plasma core temperature to reach -30 ℃ is ≤ 40 minutes;
7. Capacity: Each batch can freeze at least 100 bags of plasma (200ml/bag);
8. Compatibility: Simultaneously freeze plasma bags of different capacities, allowing for simultaneous freezing of 50ml, 100ml, or 200ml plasma bags of different capacities;
9. Multifunctional: It can achieve both quick freezing of tablets and short-term storage. After the quick freezing is completed, it can be taken out in a timely manner, and can also be taken out during the next work;
10. Cold storage board ≥ 9 layers;
11. The cold storage plate has a pressure function, which can compress the plasma bag flat;
12. Freezing box: Each quick freezing refrigerator is equipped with at least 28 quick freezing boxes;
13. Simulated plasma quality control bag: The large screen display can display the temperature of the quality control bag in real time, and record and save the temperature curve of the quality control bag;
14. Sensors: The refrigerator needs to have an air temperature sensor, a cold plate temperature sensor, and a quality control bag temperature sensor inside;
15. Intelligent software: Large screen display of real-time upper and lower temperature layers, recording continuous temperature curves; Can add operator and plasma bag barcode information according to user needs; Can be networked with the blood station management information system; Temperature data can be connected to the management system.
